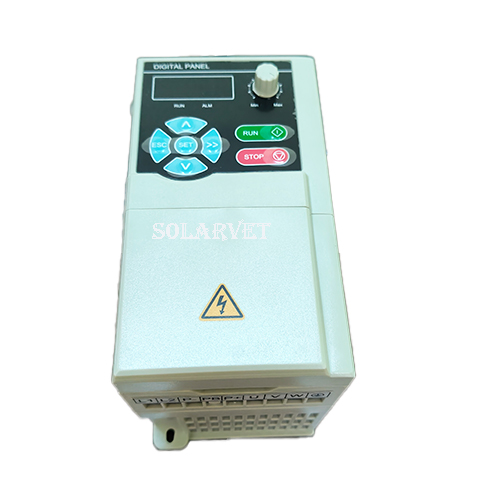

3Phase Hybrid Pump Inverter 1.5KW

3phase Hybrid Solar Pump Inverter feature:

The best 3phase hybrid pump inverter in kenya has the following features;
Maximum power point tracking (MPPT) with fast response speed and stable operation
Enable to drive for 1 phase AC pumps or 3 phase AC pumps, also compatible with synchronous or asynchronous (PMSM) pump.
Enable to drive for PMSM high speed and high efficiency pumps without motor ID auto tuning
Dry run (under load ) protection, lowest speed auto tuning , Pumps maximum current protection, Minimum power input protection…
The PQ (power/flow) performance curve enables to calculate the flow output from the pump
Dual mode AC and DC power supply input is available
Digital signal of water level sensor and analog signal of water level sensor for water tank fulling detect.
Dedicated hardware design with dual CPU, independent air duct design
Import IGBT module such as Infineon to ensure good quality
Enhanced lightning protection module
GPRS remote control module for distance monitoring, control, parameters modification, and history data record..
Efficiency is higher than 99.5%, power factory not less than 0.96 for below 15kw inverter.

The 3phase hybrid pump inverter is positioned in environmental friendly and economical PV market. The product is applicable to PV pumping system, replaces water storage with electric storage and needs no battery modules. The direct current generated by solar modules is input to the Solarvet pump inverter and then converted into the alternating current to drive various pumps directly. Additionally, the output frequency is adjustable in real time according to sunlight intensity change.
Fully automatic system using variable speed drive compatible with AC, 3-phase, submersible and surface mount pumps, and high efficiency PMSM Pumps. It also provides all kinds of protection function for pumps such as  Dry run protection (under load protection), High voltage surge, Low input voltage, Open motor circuit, Short circuit, Over heat, Earth fault & Phase missing
